| Product Attribute | Attribute Value |
|---|---|
| Application | Mobile data recording and transmission in the fields of medical, laboratory and measuring technology, storage and sales logistics, digital open and closed-loop control technology |
| Color | Gray |
| Cover Color | Dark Gray |
| Depth | 3.74" (95mm) |
| Dimensions | 10.43 x 7.28 x 3.74 in. (264.92 x 184.91 x 95 mm) |
| Enclosure Mounting | Wall Mount |
| IP Rating | IP66 |
| Length | 10.434" (265.0236mm) |
| Material | ABS |
| Material, Gasket | Neoprene |
| Material, Screw | Stainless Steel |
| NEMA Rating | 13 |
| Series | |
| Size | Small |
| Size, Approximate Depth | 3.7" (95mm) |
| Size, Approximate Height | 10.4" (265mm) |
| Size, Approximate Width | 7.3" (185mm) |
| Standards | UL94-HB Flammability Rating |
| Temperature Range | -40 to 80 °C |
| Type | Box-Lid |
| Width | 7.284" (185mm) |
Overview

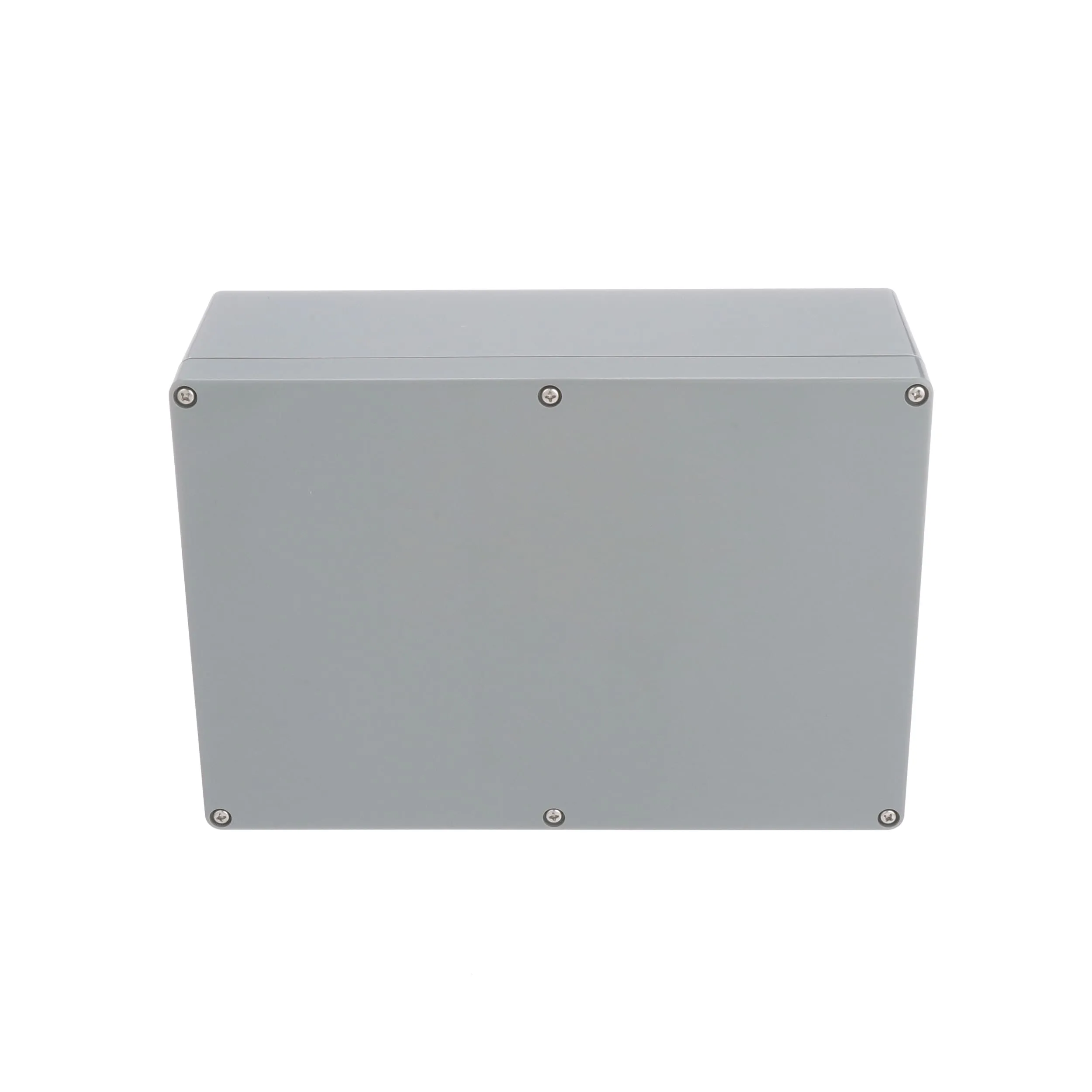

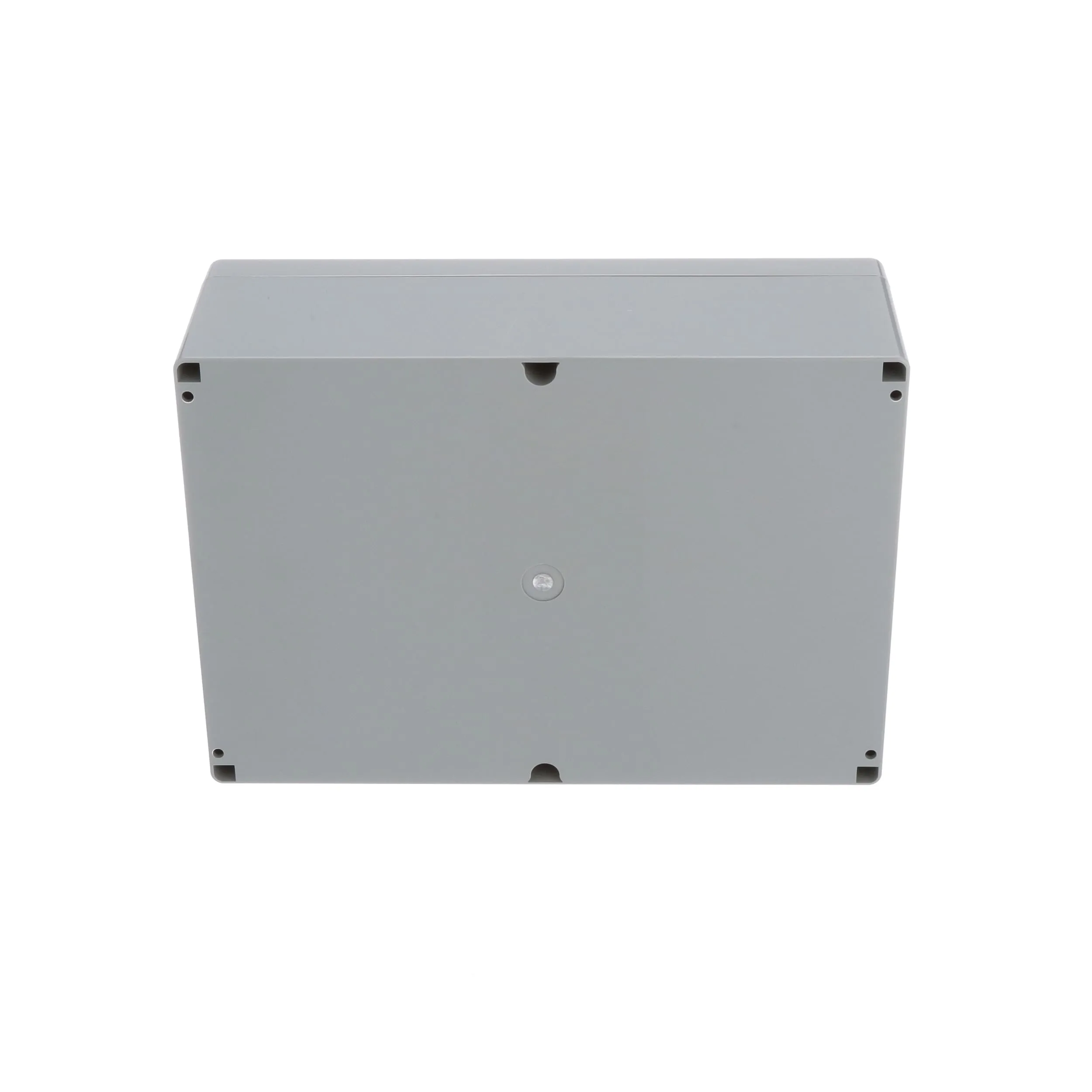

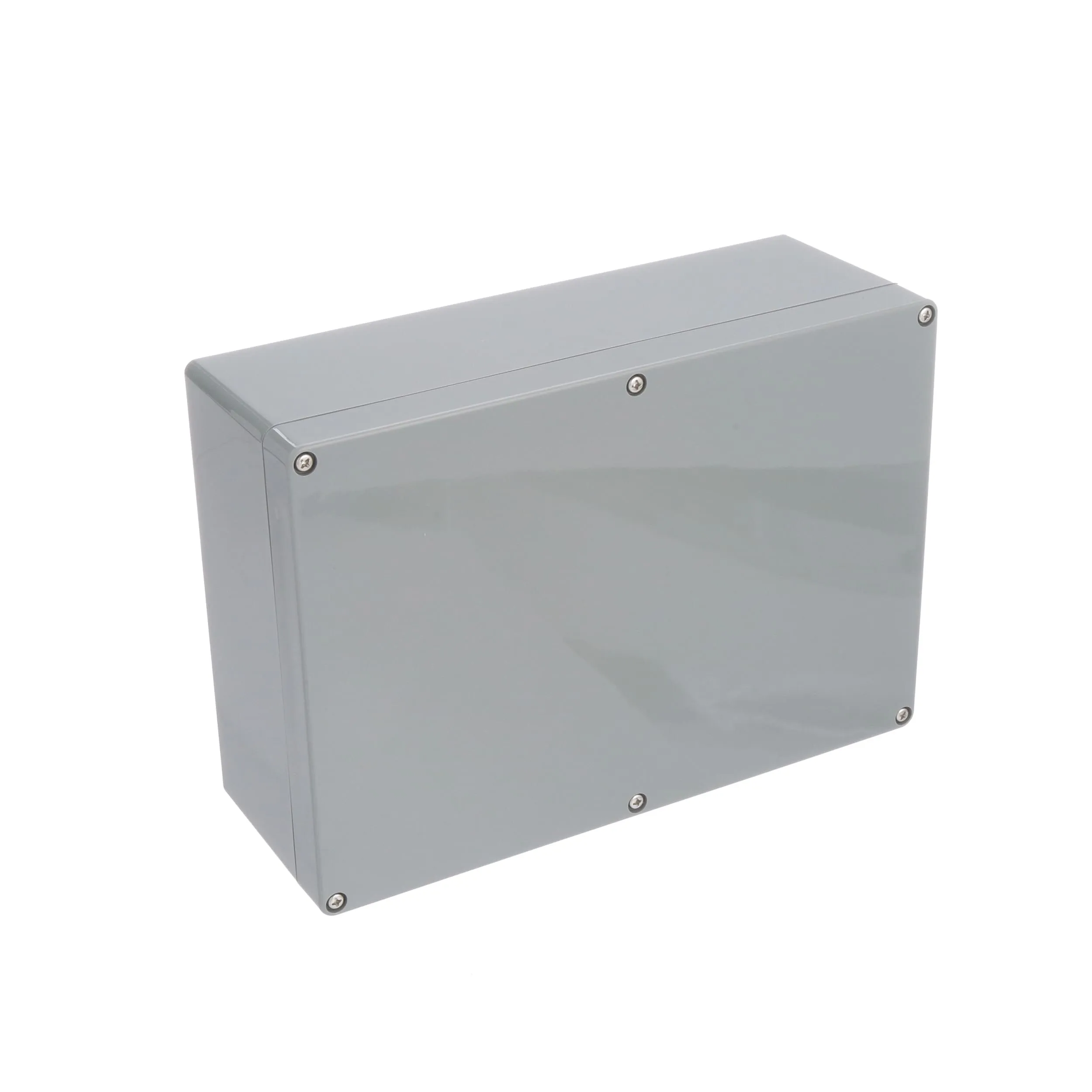

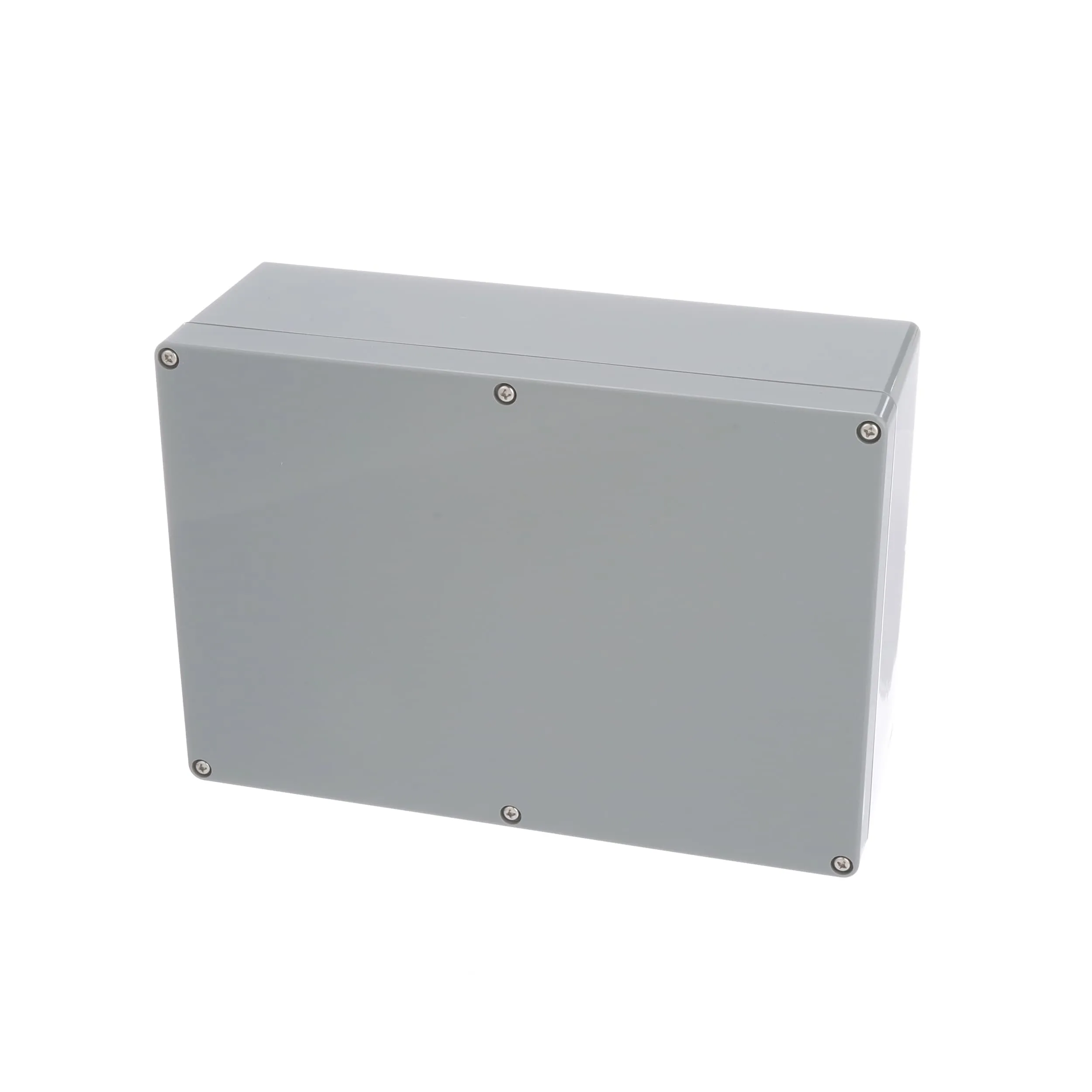

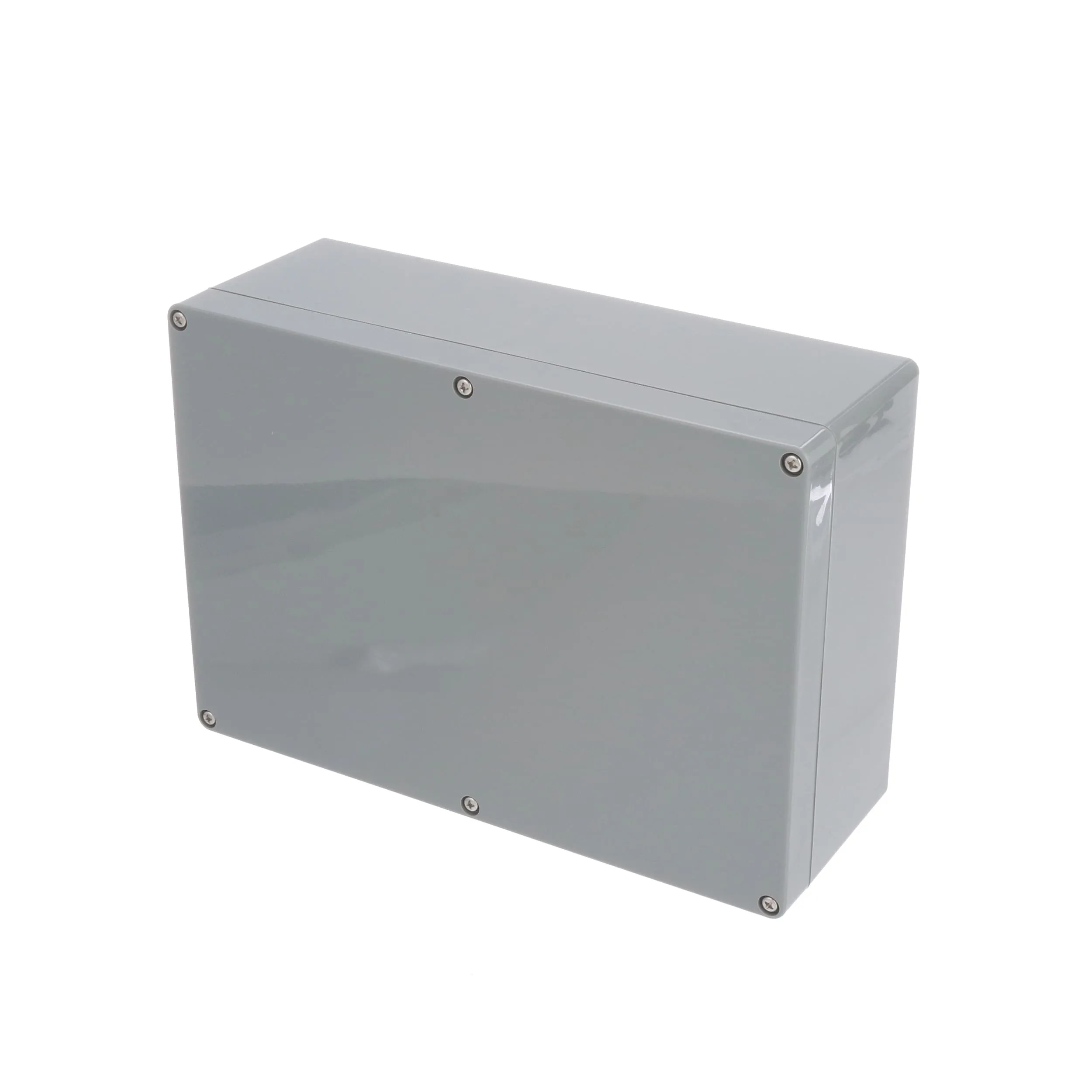

Bud Industries PN Series — Wall Mount Plastic NEMA 4X Box Enclosures:
These Polycarbonate and high-impact ABS molded enclosures meet NEMA 1, 2, 4, 4X, 12, and 13, IEC52/ IP65, and UL508-4X specifications. They are ideal for PCB enclosures, junction boxes, and other applications in the electrical and electronic industries which are used in wet, dirty and/or corrosive environments. Available in a variety of sizes, these molded enclosures are offered in three different styles.
Style 1: Light gray polycarbonate body and cover. Body/Cover - UV stabilized, UL94-HB indoor/outdoor flammability rating.
Style 2: Light gray polycarbonate body and clear polycarbonate cover. Body/Cover - UV stabilized, UL94-HB indoor/outdoor flammability rating.
Style 3: Dark gray ABS body and cover. Body/Cover - UL94-HB flammability rating (indoor only).
Series Features:
